Used and trusted by Touge Factory for all of our oil cooler setups.
Setrab Pro Line Oil Coolers for Racing
Setrab ProLine is developed to meet the racing and aftermarket demand on performance, flexibility and availability.
Setrab has utilized several different oil cooler designs, each with its own characteristics suitable for different cooling demands.
Setrab Pro Line Coolers are Controlled Atmosphere Brazed as complete units in computerized furnaces.
In addition to the brazing process, which by itself provides a very good internal and external surface treatment, Setrab coolers receive an epoxy coating to further enhance the outer corrosion resistance and to give the coolers a high surface finish.
The most flexible high-performance oil cooler available.

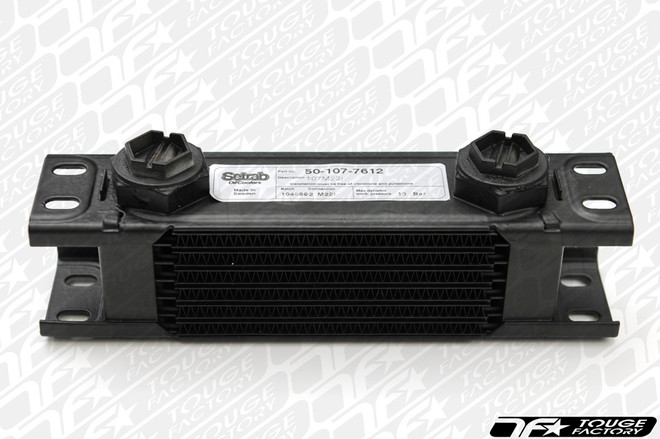

The Setrab STD oil cooler design is based on shallow aluminum dish plates brazed together to form tubes with internal in-line Turbulators and external mini-louvered air fins. The STD is offered in the broadest range of sizes of any other high performance oil cooler available. This means there is a Setrab STD available for your most demanding application. STD coolers are designed for maximum working pressure to 150 psi.
Lightweight, high performance, low pressure-drop, and durability have united in the STD to create the most demanded cooler by top teams and builders worldwide.
The STD cooler is provided with specialized M22 female ports to allow the use of high quality Setrab AN and pushlock adapters in sizes appropriate to the application.
100 Series STD Oil Coolers are all 8 1/4" OA Length and 2" Thick, check list below for Height
