Description

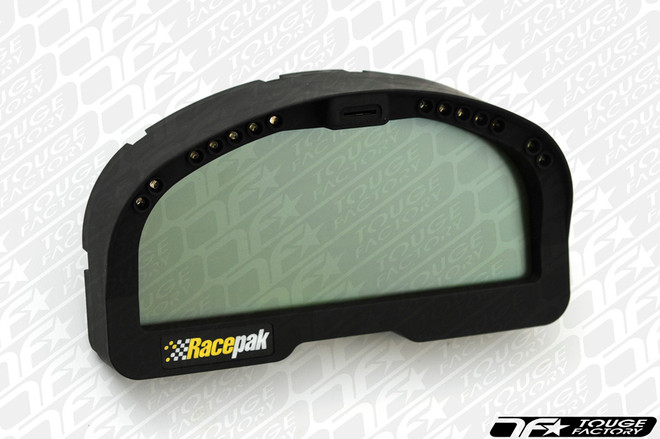

The IQ3 data logger dash represents an entirely new concept in data logging dashes and is designed to be a complete data center. Contained inside the fully programmable dash is a 32 channel data logger, 512 MB memory card, GPS board and 3 axis G meter. The programmable shift lights are protected from sunlight by a molded shield above the lights, while the low glare LCD display is well recessed in the housing in order to provide viewing in all light conditions. The rear of the dash contains the connectors for the external GPS antenna, Vnet sensor cable and the Power / Ground / Engine RPM / External Programming Button harness. All sensors transmit their data through a single cable (Vnet) which is routed to the rear of the dash. This eliminates the need for a sensor harness, greatly reducing installation time, complexity and overall weight. All data is stored in a 512 MB MicroSD memory card, located in the front of the dash between the programmable shift lights. This design insures easy access to the memory card for data download. Features:
- 32 Channel Internal Data Logger
- Internally Mounted GPS
- Internal 3 Axis G Meter
- 512MB microSD Memory Card
- Programmable Shift Lights
- Programmable Warning Lights With On Screen Warning
- 24 Programmable Sensor Inputs On 4 Pages
- Programmable 5 Character Channel Name
- Gear Indicator (with appropriate tach signal)
- Predictive Lap Time
- Power/Ground/Engine RPM/External Programming Buttons Harness
- Speed, Lap Time, Lap Number From GPS
- Downloaded Data Provides Track Mapping, Segment Times, Data Reports
- Includes DatalinkII Data Analysis Software and Installation Manual
- Metric / Imperial Configurable
- Prop Slip and Prop Speed for Boat Customers
Expandable thru the AUX port with variety of V-net external sensors and Intelli-Gauges.
