Description

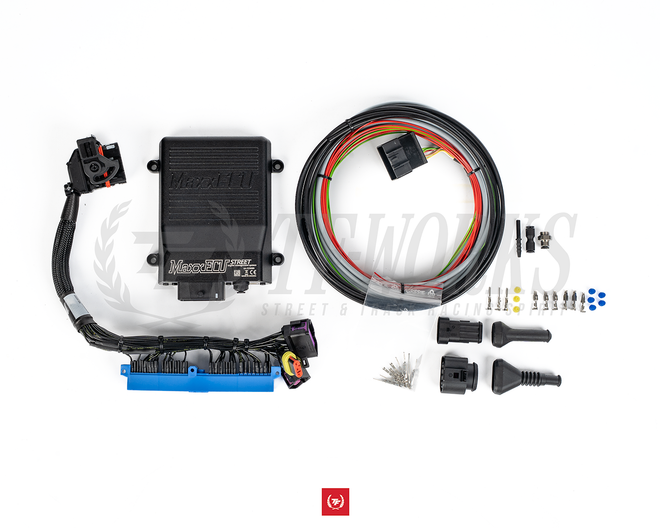

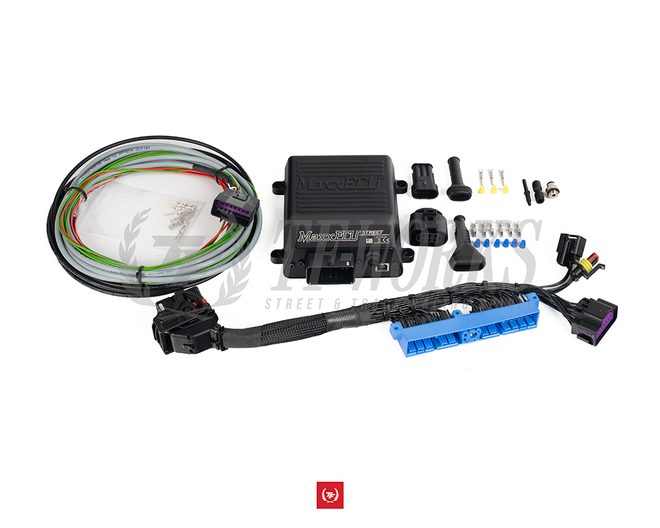

Ultimate standalone ECU setup for your SR20DET
It's really hard to beat what this ECU offers for the price.
nyone looking to get aways from a ROM tune or want to add safeties to their setup.
We use this ECU on many of our SR20 Swaps in house
MTune tuning features
- 2D and 3D
- Shortcuts for most operations
- Interpolation
- Local autotune
- Live-logger
- Superfast USB connection
- Live tuning - No need to burn changes - instant save
- Table smoothing
MaxxECU trigger support
See supported trigger system in online tech pages.MaxxECU engine protections
- EGT fuel correction
- Lean power cut
- EGT power cut
- Rev limit
- Advanced warning and protection system
- Lambda fuel correction
MaxxECU auto transmission support
- GM 4L80E/4L85E (direct solenoid control)
- GM 4L60E/4L65E (direct solenoid control)
- Toyota A340E (direct solenoid control)
- Toyota A341E (direct solenoid control)
- Toyota A650E (direct solenoid control)
- BMW DCT (CAN control)
- VAG DSG (CAN control)
- GEN1 8HP (CAN control)
MaxxECU functionality
- Launch control (up to three stages)
- Rolling launch
- Anti-lag using solenoid or E-Throttle
- Traction control
- Power management
- Shift-cut
- Overrun fuel cut
- Lambda control (closed loop)
- Nitrous control
- AC control
- Boost control (closed/open loop), extra compensation tables.
- Boost level switching
- E-Throttle support
- VANOS/VVTi support
- Logging: Internal up to 1000Hz, PC logging 20Hz
- Built-in error diagnostics and handling
- Idle control using E-Throttle, idle solenoid, stepper motor or ignition timing
- Closed loop anti-stall
- Ignition timing lock for easy synchronization with timing light
- Flex fuel
MaxxECU advanced features
- Speed limiters
- Individual fuel correction per cylinder
- Injector staging
- Virtual fuel tank/fuel consumption
- Filters on TPS, RPM and MAP signals
- Trailing ignition
- Virtual inputs/internal outputs to activate internal functions
- Use of TYPE-K sensor to report IAT up to 350 degree C/660 F
- Wastegate control with CO2 for predictable boost
- Extra user table activation based on user defined settings
- After launch power limit, function to control traction after launch
- CAN inputs (advanced) - Receive CAN data from external electronics and use in MaxxECU, such as OEM vehicle buttons.
- Automatic starting and stopping of internal log function based on user conditions (speed, load, error code etc.)
- Timers and distance counters
- CAN for OEM protocols, OBDII, and CAN modules
- Clutch slip control with user defined tables (as an example)
- Measure injector resistance directly from software
- Built-in trigger oscilloscope
- Built-in trigger logger
- Flexible load/speed axis selection
- Flexible user output functions
- Flexible user PWM/FREQ output functions
- Speedometer output function
- Tachometer output selectable 5/12V, supports external flyback coil
- Sequential gearbox control
Features NOT available on MaxxECU STREET
- E-Throttle / drive-by-wire motor outputs (available on MaxxECU SPORT, RACE, RACE H2O, GEN2 RACE, PRO)
- Built-in Bluetooth (available on MaxxECU SPORT, RACE, RACE H2O, GEN2 RACE, PRO)
- Built-in knock sensor inputs (available on MaxxECU RACE, RACE H2O, GEN2 RACE, PRO)
- Built-in EGT inputs (available on MaxxECU RACE, RACE H2O, GEN2 RACE, PRO)
Suitable Applications:
S13 Silvia / 180SX SR20DET (excl: CA18DET)
S14a Silvia (facelift) SR20DET
S15 Silvia SR20DET
S15 Silvia SR20DE
