Description

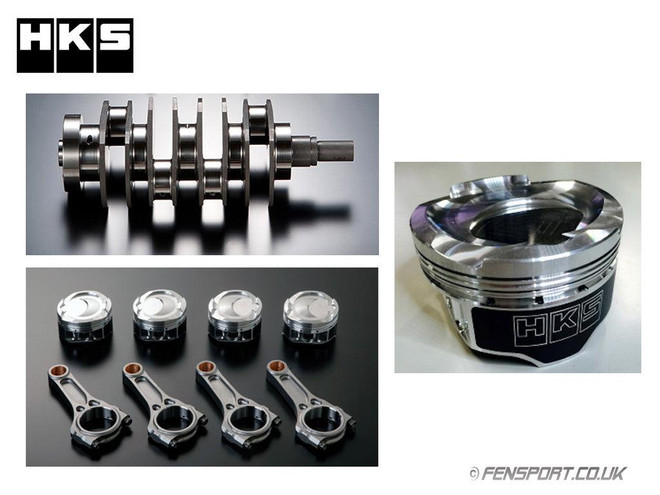

The HKS 13–20 Subaru BRZ FA20 2.1L Low-Comp Step 2 Full Kit is the ultimate bottom-end upgrade for high-boost FA20 builds. Designed and manufactured in Japan, this complete rotating assembly increases displacement to 2.1L (2091cc) using a 90.0mm forged stroker crankshaft while retaining the factory 86.0mm bore, eliminating the need for block boring or cylinder sleeves. The kit includes forged low-compression pistons, high-strength I-beam connecting rods, and a precision-balanced forged crankshaft engineered to withstand extreme horsepower and boost levels. The forged pistons feature a 3D crown optimized for the FA20 direct injection system, molybdenum-coated skirts to reduce friction and wear, and valve reliefs designed to accommodate high-lift HKS camshafts. The low-compression design provides greater tuning flexibility for turbocharged applications, while compression ratio can be further adjusted with head gasket thickness. Ideal for serious street, track, drift, and motorsport builds, this kit delivers exceptional strength, reliability, and performance as the foundation for high-horsepower FA20 engine builds.
Specifications:
- Fits 2013–2020 Subaru BRZ / Scion FR-S / Toyota 86 (FA20)
- Increases displacement to 2.1L (2091cc)
- 90.0mm forged stroker crankshaft
- 86.0mm stock bore (no machining required)
- Forged low-compression pistons with molybdenum-coated skirts
- High-strength forged I-beam connecting rods
- 3D piston crown optimized for direct injection
- Compatible with high-lift HKS camshafts
- Made in Japan
- Note: Nissan RB26/SR crankshaft bearings are required and sold separately.
