Description

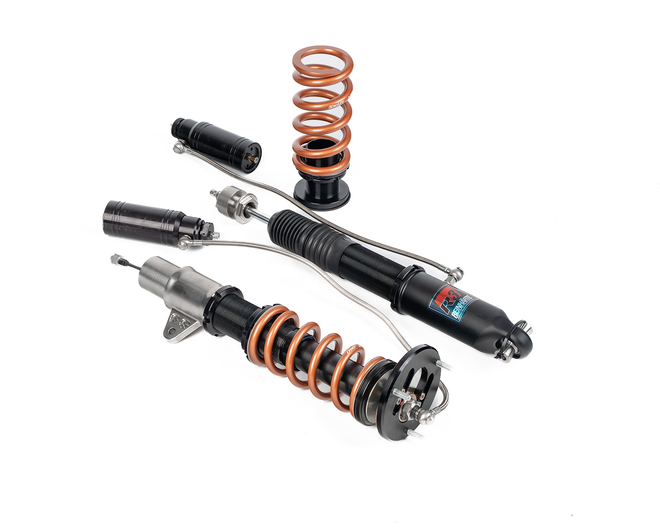

Reinharte Racing Suspension is a bespoke suspension system that is hand assembled and valved per your application right here in Illinois.
Features:
- R3 Features 16-way adjustable Rebound and Low Speed Compression. 10-way adjustable High Speed Compression
- Fully independent ride height and pre load adjustment
- EDP corrosion resistant coating exceeds over 1,000 hours of salt spray
- 2 year warranty
- Custom built to your needs / per application
- Bespoke support
- McPherson applications receive inverted dampers by default, as well as thrust (radial) bearings to prevent spring bind.
- Spherical bearing rear upper and lower mount. Eliminates all deflection from the rubber bushings commonly used.
- Using industry's highest grade Aurora Bearings for durability and smooth operation.
- Stainless steel front lower bracket also features extended sleeve to allow full knuckle engagement.
- Front Lower bracket features integrated sway bar end links to reduce binding.
Included
- Dyno Chart
- SWIFT Springs
- Extreme All Weather shock covers
- Clicker extension when applicable
*Additional options available upon request - Please contact us (fee's may apply)*
- Aluminum Damper Casing
Built to order with an average lead time is around 2 weeks.
